The Future of Travel: Building a Multi-Agent Ecosystem with the Internet of Agents

Imagine a travel agency that never sleeps. A world where tourists get personalized itineraries in seconds, guides find the perfect clients instantly, and complex logistics are solved without a single human phone call.

This isn’t science fiction—it’s the power of Multi-Agent Systems. And to prove it, we’ve built the Tourist Scheduling System, a reference implementation that uses Google’s Agent Development Kit (ADK) to turn this vision into code.

In this deep dive, we’ll peel back the layers of a fully distributed AI ecosystem. We’ll show you how independent agents—representing tourists and guides—negotiate, coordinate, and solve problems in real-time, powered by secure communication and dynamic discovery.

🌍 The Concept: A Digital Marketplace

The Tourist Scheduling System models a bustling travel marketplace. Instead of rigid algorithms, we have autonomous agents acting with intent:

Tourist Agents: The demanding travelers. They have budgets, specific interests (like “Architecture” or “Food”), and tight schedules.
Guide Agents: The local experts. They have specialties, hourly rates, and limited availability.
Scheduler Agent: The ultimate matchmaker. It’s the central hub that listens to everyone and orchestrates the perfect itinerary.

This goes beyond a simple chat simulation. It’s a living, breathing distributed system featuring Dynamic Service Discovery, Secure Agent-to-Agent (A2A) Communication via Secure Low Latency Interactive Messaging (SLIM), and full observability with OpenTelemetry.

⚙️ How It Works: The Internet of Agents

We didn’t just want agents that chat; we wanted agents that work. To achieve this, we combined LLMs with the reliability of distributed systems engineering.

1. The Hub-and-Spoke Architecture

The system operates on a hub-and-spoke model. The Scheduler Agent sits at the center, not as a dictator, but as a coordinator, managing the flow of information between the transient Tourists and Guides.

graph TD
    classDef infra fill:#03142b,stroke:#0251af,stroke-width:2px,color:#f3f6fd;
    classDef agents fill:#0251af,stroke:#f3f6fd,stroke-width:2px,color:#f3f6fd;

    subgraph "Infrastructure"
        Dir[Agent Directory<br/>Service Registry]:::infra
        Dash[Dashboard UI<br/>Visualization]:::infra
        SLIM[SLIM Transport<br/>Secure Mesh]:::infra
    end

    subgraph "Agents"
        T1[Tourist Agent 1]:::agents
        T2[Tourist Agent 2]:::agents
        G1[Guide Agent 1]:::agents
        G2[Guide Agent 2]:::agents
        Sched[Scheduler Agent<br/>Coordinator]:::agents
    end

    %% Registration
    T1 -.->|Publish Capability| Dir
    G1 -.->|Publish Capability| Dir
    Sched -.->|Publish Capability| Dir

    %% Communication
    T1 --"TouristRequest (via SLIM)"--> Sched
    T2 --"TouristRequest (via SLIM)"--> Sched
    G1 --"GuideOffer (via SLIM)"--> Sched
    G2 --"GuideOffer (via SLIM)"--> Sched

    %% Dashboard Updates
    Sched --"Events & Status"--> Dash

2. Anatomy of an Agent

Each agent in our system is a specialized Python class inheriting from ADK’s LlmAgent. But an agent is only as good as its tools.

The Scheduler: The Brains of the Operation

The Scheduler Agent (src/agents/scheduler_agent.py) is the heavy lifter. Instead of a single prompt doing everything, we equipped it with precise Tools:

Request Parser (register_tourist_request): Translates “I want a cheap art tour on Monday” into structured JSON constraints.
Guide Onboarding (register_guide_offer): Registers new guides, capturing their niche expertise and rates.
The Matchmaker (run_scheduling): Executes a greedy matching algorithm that optimizes for budget and interest overlap.
Status Reporter (get_schedule_status): Provides real-time visibility into the system’s state.

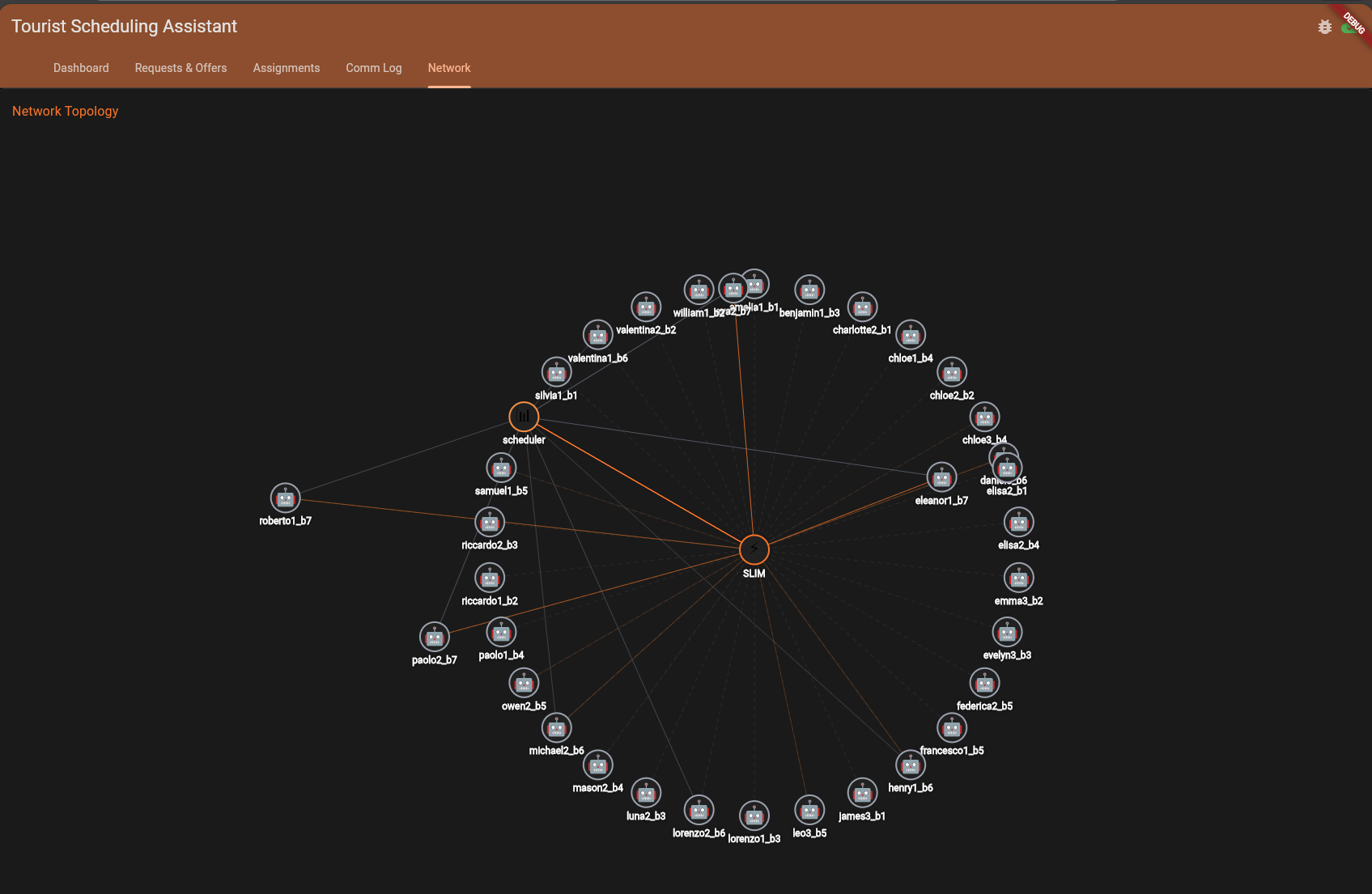

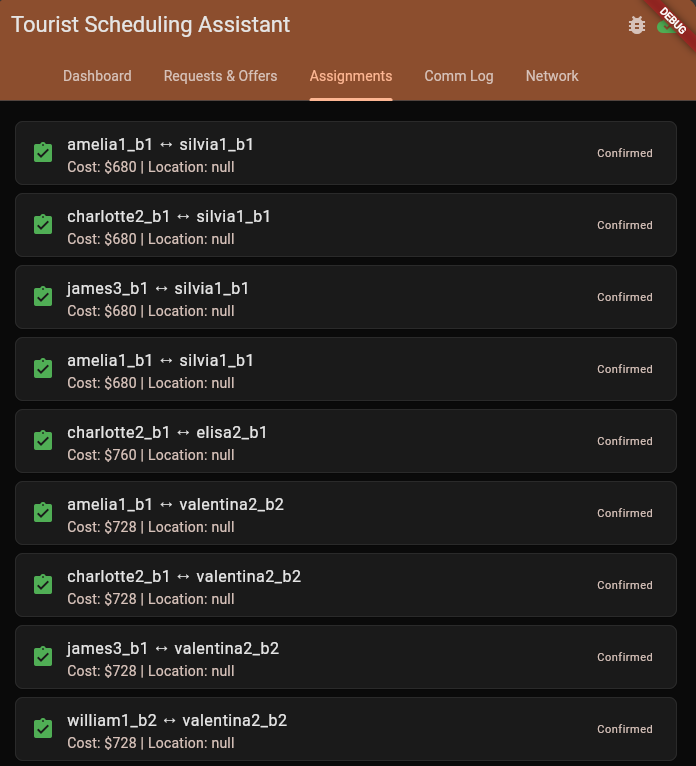

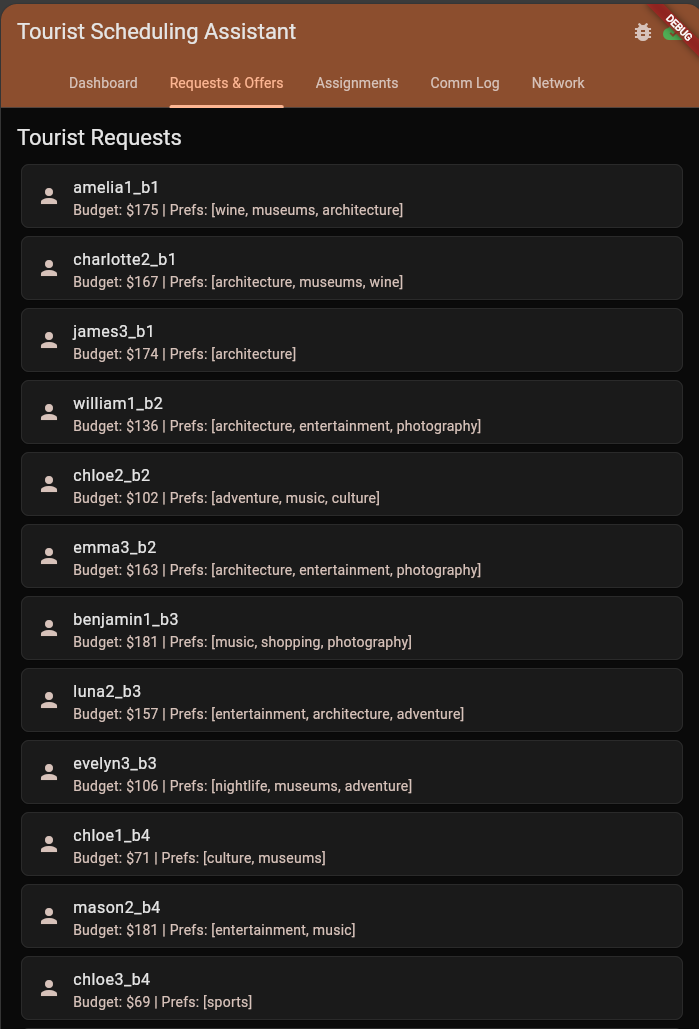

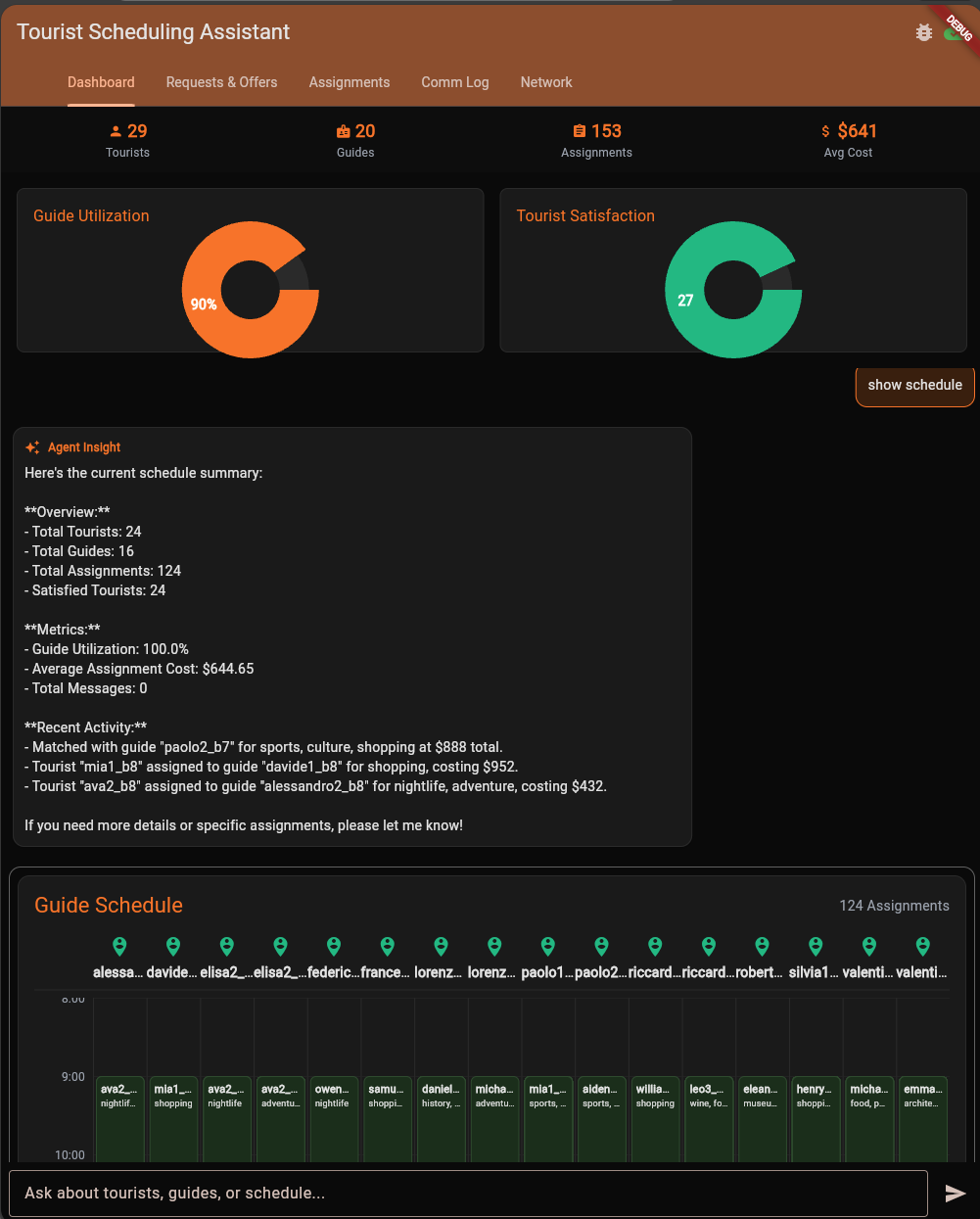

The Dashboard Agent: The Face

While the Scheduler handles the logic, the Dashboard Agent (src/agents/ui_agent.py) translates the system’s state for human consumption. It communicates with the Flutter frontend using the A2UI (Agent-to-UI) protocol. This standardizes how agents stream generative UI components to client applications, allowing for dynamic, rich interfaces that update in real-time.

The A2A Protocol

How do these agents find each other?

Discovery: No hard-coded IPs here. Agents publish their “Business Cards” to the Agent Directory and look up the Scheduler dynamically.
Transport: They communicate via the A2A protocol. We use SLIM to ensure every message is encrypted and authenticated via MLS. It’s like a VIP line for your AI agents.

3. The Live Performance

Here is the sequence of events that unfolds when you run the demo:

sequenceDiagram
    participant T as Tourist Agent
    participant G as Guide Agent
    participant S as Scheduler Agent
    participant D as Dashboard

    Note over T, G: Agents Start Up & Register with Directory

    par Parallel Registration
        G->>S: "I'm a guide specializing in Art, $40/hr"
        S->>S: Call Tool: register_guide_offer()
        S->>D: Update: New Guide Available
    and
        T->>S: "I want an Art tour, max $50/hr"
        S->>S: Call Tool: register_tourist_request()
        S->>D: Update: New Request Pending
    end

    Note over S: Trigger Scheduling Logic

    S->>S: Call Tool: run_scheduling()
    S->>D: Update: Match Formed (Tourist <-> Guide)

    S->>T: "You are booked with Guide 1!"
    S->>G: "New booking confirmed."

🛠️ Under the Hood: The Code

The full source code for this demo is available in the Tourist Scheduling System repository. Let’s look at the actual code powering these agents. Using the Google ADK, we can define agents that are both autonomous and collaborative, interacting via well-defined interfaces.

1. Giving Agents Skills (Server-Side)

By giving the LLM agency through tools, we transform it from a passive chatbot into an active system controller capable of executing complex business logic deterministically.

The Scheduler Agent isn’t just a text generator; it’s a function caller. We give it specific tools—Python functions that modify the system state (like registering a request or running the matching algorithm). The LLM determines when and how to call them based on the conversation context.

# From src/agents/scheduler_agent.py

from google.adk.agents.llm_agent import LlmAgent
# We import the actual python functions that perform the business logic
from src.agents.tools import (
    register_tourist_request,
    register_guide_offer,
    run_scheduling,
    get_schedule_status,
    clear_scheduler_state
)

def get_scheduler_agent(model_config, ...):
    scheduler_agent = LlmAgent(
        model=LiteLlm(model_config),
        # We explicitly pass the tools this agent can use
        tools=[
            register_tourist_request,
            register_guide_offer,
            run_scheduling,
            get_schedule_status,
            clear_scheduler_state
        ],
        # System instructions guide the agent on tool usage
        system_instructions=SCHEDULER_INSTRUCTIONS,
        # ...
    )
    return scheduler_agent

2. Auto-Discovery with RemoteA2aAgent (Client-Side)

This abstraction decouples the agent’s logic from network complexity. The agent simply expresses an intent to communicate, and the framework handles the underlying discovery, transport negotiation, and message routing, whether over local HTTP or a secure mesh.

How does a Tourist Agent know how to “talk” to the Scheduler? It uses the RemoteA2aAgent. This class handles the discovery of the remote agent’s capabilities (via its Agent Card) and facilitates the conversation.

In HTTP mode, discovery is direct via a URL. In SLIM mode, discovery works via a topic string, allowing for location-transparent routing over the secure mesh.

# From src/agents/tourist_agent.py
from google.adk.agents.remote_a2a_agent import RemoteA2aAgent

async def create_tourist_agent(...):
    # Determine how to find the scheduler based on transport mode
    if transport_mode == "http":
        scheduler_url = os.getenv("SCHEDULER_URL", "http://localhost:8000")
        agent_card = f"{scheduler_url.rstrip('/')}/.well-known/agent-card.json"
    else:
        # For SLIM, we use a minimal card with the topic string
        scheduler_topic = os.getenv("SCHEDULER_SLIM_TOPIC", "agntcy/tourist_scheduling/scheduler/0")
        agent_card = minimal_slim_agent_card(scheduler_topic)

    # The RemoteA2aAgent acts as a proxy for the remote scheduler
    scheduler_agent = RemoteA2aAgent(
        agent_card=agent_card,
        client=client,  # HTTP or SLIM client
        # ...
    )

    # We add the remote scheduler as a "sub-agent" so the tourist can call it
    tourist_agent.add_sub_agent("scheduler", scheduler_agent)
    return tourist_agent

3. The Data Contracts (A2A Agent Card)

Protocols only work if everyone agrees on the data format. This JSON document is the “Business Card” of the agent. It defines the skills (what it can do) and the inputs/outputs it expects.

/* a2a_cards/guide_agent.json */
{
  "name": "Tour Guide Agent",
  "skills": [
    {
      "id": "offer_tour",
      "name": "Offer Tour Services",
      "description": "Submits a tour offer to the scheduler...",
      "inputModes": ["text/plain"],
      "outputModes": ["text/plain"]
    }
  ],
  "capabilities": {
    "streaming": false,
    "stateTransitionHistory": false
  }
}

4. Joining the Secure Mesh (SLIM)

Security is often the hardest part of distributed systems. SLIM abstracts this away by providing a “dial-tone” for secure messaging. By simply initializing this client, the agent automatically gains mutual authentication and end-to-end encryption without managing complex certificate chains manually.

When running in SLIM mode, we need to configure the secure transport. This snippet shows how the Tourist Agent initializes its connection to the secure mesh using a SLIMConfig tailored with a unique local ID. This establishes the MLS context for secure A2A checks.

# From src/agents/tourist_agent.py
from src.core.slim_transport import SLIMConfig, create_slim_client_factory
from google.adk.agents.remote_a2a_agent import RemoteA2aAgent

async def run_tourist_agent(local_id: str):
    # ...
    # 1. Initialize SLIM Client
    if transport_mode == "slim":
        # Configure the Secure Layer for Intelligent Messaging
        config = SLIMConfig(
            server_address=os.getenv("SLIM_SERVER_ADDRESS", "127.0.0.1:3000"),
            local_id=local_id,  # Unique ID for this specific tourist instance
            connect_timeout=10.0
        )
        # Create an encrypted, authenticated client factory
        client_factory = await create_slim_client_factory(config)

    # 2. Use it in RemoteA2aAgent
    # The A2A loop now happens over the encrypted SLIM mesh
    scheduler_remote = RemoteA2aAgent(
        agent_card=minimal_slim_agent_card(scheduler_topic),
        a2a_client_factory=client_factory,  # Inject the secure transport factory
        # ...
    )

    # 3. Agents communicate securely by default
    response = await tourist_agent.send_message(
        "I need a tour guide...",
        connection=scheduler_remote
    )
    # ...

5. Publishing to the Directory

In a dynamic ecosystem, static configuration files are brittle. By publishing their capabilities to a central Directory, agents become instantly discoverable to the entire fleet, enabling a truly scalable and self-organizing marketplace.

Before any discovery can happen, agents must announce themselves. We use the Agent Directory SDK to publish a Directory Record (often called an Agent Card in the context of the directory). Note that this is distinct from the A2A Agent Card mentioned earlier; while the A2A Card defines the protocol interface, this Directory Record serves as the registration entry used for lookup and routing.

# from publish_card.py
from agntcy.dir_sdk.client import Client
from agntcy.dir_sdk.models import core_v1, routing_v1
from google.protobuf.struct_pb2 import Struct
from google.protobuf.json_format import ParseDict

def publish_card(card_data: dict):
    # Initialize the Directory Client (defaults to localhost:8888)
    client = Client()

    # 1. Wrap the card JSON in a Record structure
    data_struct = Struct()
    ParseDict(card_data, data_struct)
    record = core_v1.Record(data=data_struct)

    # 2. Push the record to the immutable store
    # This returns a Content ID (CID) for the unique data blob
    refs = client.push([record])
    cid = refs[0].cid

    # 3. Publish the CID to the routing table
    # This makes the agent discoverable by its UUID or alias
    pub_req = routing_v1.PublishRequest(
        record_refs=routing_v1.RecordRefs(
            refs=[core_v1.RecordRef(cid=cid)]
        )
    )
    client.publish(pub_req)
    print(f"Agent successfully published with CID: {cid}")

The Directory provides more than just discovery—it provides Trust. Built on top of an OCI (Open Container Initiative) compliant registry, it employs sigstore-based provenance. Crucially, the record itself remains lightweight; signatures and public keys are linked to the record using OCI referrers. This allows consuming agents to cryptographically verify the origin and integrity of the service they are about to contact, preventing spoofing attacks in the open mesh.

6. Pulling Cards from the Directory

This runtime lookup capability is what makes the system resilient. Agents can come and go, change IPs, or update their pricing, and their peers will always find the most up-to-date connection details via the Directory.

Conversely, when an agent needs to find a peer, it can query the Directory instead of relying on local config files. This snippet demonstrates searching for an agent by its published name to retrieve its live Agent Card.

# From src/core/a2a_cards.py
from agntcy.dir_sdk.client import Client
from agntcy.dir_sdk.models import search_v1
from google.protobuf.json_format import MessageToDict

def fetch_agent_card(agent_name: str):
    client = Client()

    # Search for the record by its 'name' field
    query = search_v1.RecordQuery(
        type=search_v1.RECORD_QUERY_TYPE_NAME,
        value=agent_name  # e.g., "Tourist Scheduling Coordinator"
    )

    # Execute the search
    req = search_v1.SearchRecordsRequest(queries=[query], limit=1)
    results = client.search_records(req)

    if results:
        record = results[0].record
        # Convert the protobuf Struct back to a Python dict
        card_data = MessageToDict(record.data)
        print(f"Found card for {agent_name}: {card_data}")
        return card_data

    return None

7. The Conversation: Agents in Action

How do these agents actually talk to each other? Let’s look at the two main communication patterns in the system.

1. Client-Server Pattern (Tourist → Scheduler)

The Tourist Agent treats the Scheduler as a “sub-agent.” It doesn’t need to know the low-level details of HTTP or SLIM; it just knows the Scheduler is a helpful entity it can talk to.

# From src/agents/tourist_agent.py

# 1. We create a proxy for the remote Scheduler Agent
scheduler_remote = RemoteA2aAgent(
    name="scheduler",
    description="The tourist scheduling coordinator that handles tour requests",
    # The 'agent_card' tells us HOW to connect (URL or SLIM topic)
    agent_card=agent_card,
    client=client,
)

# 2. We add it as a sub-agent to the Tourist
tourist_agent = LlmAgent(
    name=f"tourist_{tourist_id}",
    instruction="You are a tourist... communicate with the scheduler sub-agent.",
    sub_agents=[scheduler_remote],
)

2. Fire-and-Forget Pattern (Scheduler → UI Agent)

When the Scheduler processes a request, it pushes real-time updates to the Dashboard (UI Agent). This allows the frontend to react instantly—drawing new nodes on the graph or updating the schedule view—without the Scheduler waiting for a response.

# From src/agents/tools.py

def register_tourist_request(tourist_id, preferences, ...):
    # 1. Update internal state
    request = TouristRequest(tourist_id=tourist_id, ...)
    _scheduler_state.tourist_requests.append(request)

    # 2. Notify the UI Agent immediately
    # This sends a raw event that the UI Agent converts into visual elements
    send_to_ui_agent({
        "type": "tourist_request",
        "tourist_id": tourist_id,
        "preferences": preferences,
        "budget": budget,
        "availability": {
            "start": availability_start,
            "end": availability_end,
        }
    })

    return {"status": "registered"}

8. The UI Protocol (A2UI)

Instead of hardcoding widgets, the Dashboard Agent streams “Generative UI” updates. This schema defines valid operations like render, update, or append, allowing the frontend to dynamically construct the view based on the agent’s internal state.

# src/agents/a2ui_schema.py
A2UI_SCHEMA = """
{
  "type": "array",
  "items": {
    "type": "object",
    "properties": {
      "operation": {
        "type": "string",
        "enum": ["render", "update", "append", "delete"]
      },
      "componentName": { "type": "string" },
      "data": { "type": "object" }
    },
    "required": ["operation"]
  }
}
"""

🌟 Why This Matters

Decoupled Architecture: Agents don’t need to know where other agents are running, just what they can do.
Secure Communication: SLIM ensures that every message is encrypted and authenticated. You know exactly who is talking to whom.
X-Ray Vision: Distributed tracing with Jaeger lets you see the “thought process” of your entire swarm. Pinpoint latency and debug negotiation failures with surgical precision.
Human Command Center: The Dashboard keeps humans in the loop, providing a real-time view of the marketplace without requiring micromanagement.

🚀 Hands-On: Run the System Locally

Ready to conduct? Getting this system up and running on your local machine is straightforward. We use Docker to host the heavy infrastructure (SLIM, Jaeger, Directory) while running the agents as agile local processes.

Prerequisites

Python 3.12+
UV package manager
Docker
An API Key for Azure OpenAI or Google Gemini

Step 1: Set the Stage

Clone the repository and prepare your environment:

git clone https://github.com/agntcy/agentic-apps.git
cd agentic-apps/tourist_scheduling_system

# Create virtual environment and install dependencies
uv venv
source .venv/bin/activate
uv sync

Step 2: Configuration

Export your LLM credentials.

For Google Gemini:

export MODEL_PROVIDER="gemini"
export GOOGLE_GEMINI_API_KEY="your-google-api-key"
# Optional: Specify model
export MODEL_NAME="gemini/gemini-3-pro-preview"

Or for Azure OpenAI:

export MODEL_PROVIDER="azure"
export AZURE_OPENAI_API_KEY="your-key"
export AZURE_OPENAI_ENDPOINT="https://your-endpoint.openai.azure.com"
export AZURE_OPENAI_DEPLOYMENT_NAME="gpt-4o"

Step 3: Launch

Start the infrastructure and run the demo:

# Start SLIM transport and Jaeger tracing containers
./setup.sh start

# Run the agents with SLIM transport enabled
source run.sh --transport slim --tracing

Step 4: Visualization (Optional)

While the system provides a basic dashboard at http://localhost:10021, you can launch the rich Flutter frontend for a better experience:

cd frontend
./setup.sh
flutter run -d web-server --web-port 8080

Open http://localhost:8080 to see the live system. Use http://localhost:16686 to view the distinct traces of their interactions in Jaeger.

📁 Project Structure

It’s helpful to understand how the project is organized. Here’s a look at the key directories:

tourist_scheduling_system/
├── src/
│   ├── agents/                  # The core agent logic
│   │   ├── scheduler_agent.py   # The "Brain" - coordinates matches
│   │   ├── ui_agent.py          # Serves the Dashboard
│   │   ├── guide_agent.py       # Simulated guide behavior
│   │   ├── tourist_agent.py     # Simulated tourist behavior
│   │   └── tools.py             # Tools the Scheduler can use
│   └── core/                    # Shared utilities
│       ├── a2a_cards.py         # Agent capability definitions
│       ├── slim_transport.py    # Secure transport logic
│       └── tracing.py           # OpenTelemetry setup
├── scripts/                     # Kubernetes deployment helpers
│   ├── directory.sh             # Deploys Agent Directory
│   ├── spire.sh                 # Deploys SPIRE identity provider
│   └── slim-*.sh                # Deploys SLIM infrastructure
├── deploy/
│   └── k8s/                     # Kubernetes YAML manifests
├── frontend/                    # Flutter-based UI Dashboard code
├── a2a_cards/                   # JSON definitions for agent capabilities
└── oasf_records/                # Directory registration records

Helper Scripts for Local Use

The repository includes a set of bash scripts to simplify this process:

`setup.sh`

This is your infrastructure manager. It spins up the necessary containers for SLIM, Jaeger, and the Directory.

Start Infrastructure: ./setup.sh start
Stop Infrastructure: ./setup.sh stop
Clean Up: ./setup.sh clean (removes containers and volumes)

`run.sh`

This script launches the actual Multi-Agent System. It runs the Scheduler, Dashboard, and simulated Guides and Tourists.

Basic Usage:

# Run with SLIM secure transport
source run.sh --transport slim

# Run with open HTTP transport
source run.sh --transport http

Advanced Parameters:

--tracing: Enable OpenTelemetry tracing (requires ./setup.sh start first).
--guides N: Simulate N guide agents (default: 2).
--tourists N: Simulate N tourist agents (default: 3).
--duration N: Run the demo for N minutes (0 = run once).
--real-agents: Use fully autonomous ADK agents instead of simplified simulators.
--provider [azure|google]: Switch LLM providers dynamically.

Example: Scale Up Test To run a larger simulation with 5 tourists and 5 guides using Gemini Pro, with full tracing:

source run.sh \
  --transport slim \
  --tracing \
  --guides 5 \
  --tourists 5 \
  --provider google

🖥️ Running the Frontend (Optional)

For a richer, visual experience, the system includes a modern Flutter-based dashboard.

Prerequisites:

Flutter SDK installed.

Launch Instructions:

Ensure the backend agents are running (see above).

Open a new terminal and run:

 cd frontend
 ./setup.sh
 flutter run -d web-server --web-port 8080

Open http://localhost:8080 to view the live dashboard.

📊 Observability: Logs and Traces

Debugging distributed agents can be challenging. To solve this, the system includes a comprehensive telemetry stack powered by OpenTelemetry and Jaeger.

Distributed Tracing

When you enable tracing (via the --tracing flag or the SLIM configuration), every agent interaction is recorded as a “span” in a distributed trace.

Global Context: See the entire request lifecycle, starting from the Tourist’s initial request to the Scheduler, through the internal tool calls (register_tourist_request), and finally to the Guide’s confirmation.
Performance Bottlenecks: Identify which part of the negotiation process is slow (e.g., latency in LLM generation vs. network transport).
Error Diagnosis: Pinpoint exactly where a negotiation failed (e.g., did the Guide reject the budget, or did the Scheduler fail to find a match?).

Structured Logging

In addition to traces, each agent process generates detailed structured logs. These logs capture:

Agent Decisions: Why did an agent choose a specific tool?
LLM Prompts & Completions: What exact text was sent to the model and what did it return?
State Changes: Updates to the schedule, new bookings, and status transitions.

Logs are written to the logs/ directory locally or streamed to standard output in Docker/Kubernetes environments, making them easy to collect with tools like Fluentd or Promtail.

🖥️ Sample Output

When you run the system, you’ll see the infrastructure spin up, followed by the agents coming online. The demo runner will then simulate a stream of tourists and guides entering the system.

To generate the output below, we first ensure a clean environment, start the infrastructure, and then execute the demo runner:

./setup.sh clean
./setup.sh start --tracing
./run.sh --transport slim --tracing --duration 1

Here is what a successful run looks like. In the log output below, you can see the startup sequence of the Scheduler and Dashboard, followed by the “Simulation Mode” where simulated Tourists and Guides register themselves and begin negotiating bookings in real-time.

[RUN] Inferred MODEL_PROVIDER=azure from AZURE_OPENAI_API_KEY
=======================================================
Tourist Scheduling System
=======================================================
[RUN] Transport: slim
[RUN] Tracing: true
[RUN] Scheduler: http://localhost:10000
[RUN] Dashboard: http://localhost:10021
[RUN] Guides: 2 | Tourists: 3
[RUN] Duration: 1 minutes
[RUN] SLIM: http://localhost:46357
[RUN] Jaeger: http://localhost:16686
=======================================================
[RUN] Starting scheduler agent...
[RUN] Scheduler PID: 54557 -> /Users/lumuscar/Projects/agntcy/agentic-apps/tourist_scheduling_system/scheduler_agent.log
[RUN] Starting dashboard agent...
[RUN] Dashboard PID: 54633 -> /Users/lumuscar/Projects/agntcy/agentic-apps/tourist_scheduling_system/ui_agent.log
[RUN] Waiting for Scheduler on port 10000...
[OK] Scheduler ready
[RUN] Checking Dashboard health...
[OK] Dashboard healthy
=======================================================
[OK] Agents running!
   📊 Dashboard: http://localhost:10021
   🗓️  Scheduler: http://localhost:10000
   🔍 Jaeger: http://localhost:16686

Logs:
   tail -f /Users/lumuscar/Projects/agntcy/agentic-apps/tourist_scheduling_system/scheduler_agent.log
   tail -f /Users/lumuscar/Projects/agntcy/agentic-apps/tourist_scheduling_system/ui_agent.log
=======================================================
[RUN] Running demo simulation...
13:47:29 | INFO | Logs will be written to: /Users/lumuscar/Projects/agntcy/agentic-apps/tourist_scheduling_system/logs
13:47:29 | INFO | OTLP trace exporter configured: http://localhost:4318/v1/traces
13:47:29 | INFO | File trace exporter configured: /Users/lumuscar/Projects/agntcy/agentic-apps/tourist_scheduling_system/traces/traces_20260113_134729.jsonl
13:47:29 | INFO | OpenTelemetry tracing initialized for service: tourist-scheduling-demo
13:47:29 | INFO | OpenTelemetry tracing enabled
======================================================================
🎯 Simulation Mode
======================================================================

Sending demo traffic to running agents:
  • Scheduler: http://localhost:10000
  • Dashboard: http://localhost:10021
  • 2 guides, 3 tourists
  • Duration: 1 minutes


🔄 Iteration 1 (approx 0 min remaining)...
📝 Registering 2 guides...
   🗺️ Guide silvia1_b1: shopping, history, adventure @ $85/hr
   🗺️ Guide elisa2_b1: nightlife @ $95/hr

📝 Registering 3 tourists...
   🧳 Tourist amelia1_b1: wine, museums, architecture @ $175/hr budget
   🧳 Tourist charlotte2_b1: architecture, museums, wine @ $167/hr budget
   🧳 Tourist james3_b1: architecture @ $174/hr budget

🔄 Running scheduling algorithm...
   The scheduling algorithm has successfully completed, resulting in 3 assignments. Here's the summary of the matches made:

1. **Tourist**: amelia1_b1
   - **Guide**: silvia1_b1
   - **Time Window**: 09...
📤 Creating 2 assignments...
   🔗 amelia1_b1 ↔ silvia1_b1
   🔗 charlotte2_b1 ↔ elisa2_b1
   ✅ Sent 2 assignments

📊 Getting final status...
   Here is the current schedule status:

- **Total Tourist Requests:** 3
- **Total Guide Offers:** 2
- **Total Assignments Completed:** 3
- **Tourist Satisfaction:** 100%
- **Guide Utilization:** 50%
- **Pending Tourist Requests:** 0
- **Available Guides:** 1

All tourist requests have been successfull...

✅ Batch 1 complete!
   Dashboard updates: 17 successful, 0 failed
   ⏳ Next iteration in 2.4s...

🔄 Iteration 2 (approx 0 min remaining)...
📝 Registering 2 guides...
   🗺️ Guide riccardo1_b2: shopping @ $100/hr
   🗺️ Guide valentina2_b2: architecture, food, shopping @ $91/hr

📝 Registering 3 tourists...
   🧳 Tourist william1_b2: architecture, entertainment, photography @ $136/hr budget
   🧳 Tourist chloe2_b2: adventure, music, culture @ $102/hr budget
   🧳 Tourist emma3_b2: architecture, entertainment, photography @ $163/hr budget

🔄 Running scheduling algorithm...
   The scheduling algorithm has successfully matched tourists with guides. Here are the results:

1. **Amelia** has been matched with guide **Valentina** from 2025-06-01 09:00 to 17:00 focusing on catego...
📤 Creating 2 assignments...
   🔗 william1_b2 ↔ riccardo1_b2
   🔗 chloe2_b2 ↔ valentina2_b2
   ✅ Sent 2 assignments

📊 Getting final status...
   The current schedule status is as follows:

- **Total Tourists**: 6
- **Total Guides**: 4
- **Total Assignments Completed**: 6
- **Tourist Satisfaction**: 100%
- **Guide Utilization**: 50%
- **Pending Tourist Requests**: 0
- **Available Guides**: 2

All tourist requests have been fulfilled, and ther...

✅ Batch 2 complete!
   Dashboard updates: 17 successful, 0 failed
   ⏳ Next iteration in 2.6s...

🔄 Iteration 3 (approx 0 min remaining)...
📝 Registering 2 guides...
   🗺️ Guide lorenzo1_b3: history, art @ $79/hr
   🗺️ Guide riccardo2_b3: wine, food @ $109/hr

📝 Registering 3 tourists...
   🧳 Tourist benjamin1_b3: music, shopping, photography @ $181/hr budget
   🧳 Tourist luna2_b3: entertainment, architecture, adventure @ $157/hr budget
   🧳 Tourist evelyn3_b3: nightlife, museums, adventure @ $106/hr budget

🔄 Running scheduling algorithm...
   The scheduling algorithm has successfully matched 9 tourists with guides. Here are the details of the assignments:

1. **Tourist ID: amelia1_b1**
   - Guide ID: valentina2_b2
   - Time Window: 2025-06...
📤 Creating 2 assignments...
   🔗 benjamin1_b3 ↔ lorenzo1_b3
   🔗 luna2_b3 ↔ riccardo2_b3
   ✅ Sent 2 assignments

📊 Getting final status...
   Here is the current schedule status:

- **Total Tourist Requests**: 9
- **Total Guide Offers**: 6
- **Total Completed Assignments**: 9
- **Tourist Satisfaction**: 100%
- **Guide Utilization**: 33.3%
- **Pending Tourist Requests**: 0
- **Available Guides**: 4

All tourist requests have been matched, ...

✅ Batch 3 complete!
   Dashboard updates: 17 successful, 0 failed
   ⏳ Next iteration in 4.3s...

⏱️  Duration elapsed!

✅ Simulation complete!
[OK] Demo complete!

[RUN] Dashboard still running at http://localhost:10021
[RUN] Press Ctrl+C to stop agents.
[WARN] Shutting down...
[RUN] Stopping PID 54557
[RUN] Stopping PID 54633
[OK] Stopped

📸 Dashboard Screenshots

The dashboard provides a real-time window into the agent marketplace.

1. The Live Graph View: This view visualizes the active agents (Tourists, *Guides, Scheduler) and the messages flowing between them. The lines animate to *show the negotiation process as it happens.

☸️ Deploying to Kubernetes

Moving from local development to a production-like environment is seamless. The system comes with ready-to-use Kubernetes manifests and helper scripts.

Deployment Helper Scripts

Located in scripts/, these helper scripts automate complex Kubernetes tasks:

scripts/directory.sh: Deploys the Agent Directory via Helm. It handles downloading the chart, configuring persistence, and optionally registering the workload with SPIRE for identity.
scripts/spire.sh: Installs SPIRE (SPIFFE Runtime Environment) to provide secure identities for SLIM. It sets up the Server and Agent (DaemonSet) on your cluster.
scripts/slim-controller.sh & scripts/slim-node.sh: Deploy the SLIM Control Plane and Data Plane. These scripts manage the necessary StatefulSets and config maps to get the secure transport layer running.

To deploy the full dependency stack on a fresh cluster:

# 1. Identity Infrastructure
./scripts/spire.sh install

# 2. Secure Transport Layer
./scripts/slim-controller.sh install
./scripts/slim-node.sh install

# 3. Service Registry
./scripts/directory.sh install

Prerequisites

A running Kubernetes cluster (e.g., MicroK8s, GKE, EKS)
kubectl configured
Container images (or build your own)

Deployment Steps

Navigate to the deployment directory:
```
 cd deploy/k8s
```

Configure Environment Variables:

Set the namespace and image registry details.

 export NAMESPACE=tourist-system
 export IMAGE_REGISTRY=ghcr.io/agntcy/apps
 export IMAGE_TAG=latest

Configure Credentials:

Create the namespace and export your API keys. The deployment script will read these environment variables and create the Kubernetes secrets for you.

 kubectl create namespace $NAMESPACE

 # For Google Gemini:
 export MODEL_PROVIDER="google"
 export GOOGLE_API_KEY="your-google-api-key"

 # OR for Azure OpenAI:
 export MODEL_PROVIDER="azure"
 export AZURE_OPENAI_API_KEY="your-key"
 export AZURE_OPENAI_ENDPOINT="your-endpoint"
 export AZURE_OPENAI_DEPLOYMENT_NAME="gpt-4o"

Deploy:

You can deploy using the standard HTTP transport or the secure SLIM transport. To deploy with the default HTTP transport:
```
 ./deploy.sh http
```
Or, if you have set up the SLIM infrastructure (SPIRE, Controller, Nodes):
```
 ./deploy.sh slim
```
Scale Agents:

Simulate load by spawning multiple tourists and guides:
```
 ./spawn-agents.sh 5 tourists
 ./spawn-agents.sh 3 guides
```
Access the Dashboard:

The deployment automatically spins up the frontend. Retrieve its external address:
```
 kubectl get svc frontend -n $NAMESPACE
```
Open the provided External-IP in your browser to watch the system in action.

📊 Real-world Deployment

When deployed to a cluster, the system efficiently manages dozens of concurrent agent processes.

Test Environment:

The following metrics and logs were captured from a deployment on a 6-node Kubernetes cluster (Nodes tf-node-0 through tf-node-5).

In this topology:

SLIM DaemonSet: A slim-node pod runs on every worker node, providing a local, low-latency secure gateway for any agent scheduled on that machine.
Agent Distribution: Guide and Tourist agents are scheduled across the fleet, communicating seamlessly over the mesh regardless of their physical location.

To demonstrate the reproducibility of the environment, we first perform a full cleanup and re-deployment of the core infrastructure.

1. Infrastructure Cleanup & Installation:

We start by cleaning up any existing resources to ensure a fresh state. We execute the following commands to remove previous agent jobs, the application deployment, and the infrastructure layers:

# Clean up agent jobs and application deployment
./deploy/k8s/spawn-agents.sh clean
./deploy/k8s/deploy.sh clean

# Clean up core infrastructure
./scripts/directory.sh uninstall
./scripts/slim-controller.sh uninstall

Agent Directory Cleanup:

[WARN] Cleaning up all Agent Directory resources in namespace lumuscar-jobs...
[INFO] Uninstalling Helm release dir...
release "dir" uninstalled
[INFO] Removing Helm release secrets...
[INFO] Cleanup complete

SLIM Controller Cleanup:

[WARN] Cleaning up all SLIM controller resources in namespace lumuscar-jobs...
[INFO] Uninstalling Helm release slim-controller...
release "slim-controller" uninstalled
[INFO] Removing Helm release secrets...
[INFO] Cleanup complete

Agent Directory Installation:

[INFO] Installing Agent Directory in namespace lumuscar-jobs...
[INFO] Installing new release...
NAME: dir
STATUS: deployed
DESCRIPTION: Install complete
[INFO] Waiting for Agent Directory to be ready...
deployment "dir-apiserver" successfully rolled out

SLIM Controller Installation:

[INFO] Installing SLIM controller in namespace lumuscar-jobs...
[INFO] Installing new release...
NAME: slim-controller
STATUS: deployed
DESCRIPTION: Install complete
[INFO] Waiting for SLIM controller to be ready...
deployment "slim-control" successfully rolled out

2. Application Deployment:

With the infrastructure ready, we deploy the Tourist Scheduling System agents using the SLIM transport.

[INFO] Deploying Tourist Scheduling System with SLIM transport...
[INFO] Namespace: lumuscar-jobs
[INFO] Deploying scheduler agent...
deployment.apps/scheduler-agent created
service/scheduler-agent created
[INFO] Deploying UI dashboard agent...
deployment.apps/ui-dashboard-agent created
[INFO] Deployment complete with SLIM transport!
[INFO] Agents will communicate via SLIM gateway at:
[INFO]   Host: slim-node
[INFO]   Port: 46357

3. Running State:

Here is a snapshot of the cluster running a full simulation with multiple guide and tourist agents spawned as Kubernetes Jobs alongside the SLIM DaemonSet infrastructure.

Active Pods (SLIM Nodes & Agents):

NAME                              READY   STATUS      RESTARTS     AGE     IP             NODE
dir-apiserver-7f85dd58d5-tmf6j    1/1     Running     0            49m     10.1.196.203   tf-node-0
slim-node-9f2v5                   1/1     Running     0            8d      10.1.37.211    tf-node-3
slim-node-bm249                   1/1     Running     0            8d      10.1.69.243    tf-node-5
slim-node-gzh72                   1/1     Running     0            8d      10.1.86.4      tf-node-1
guide-agent-g1005-vdz59           1/1     Running     0            28s     10.1.196.206   tf-node-0
guide-agent-g1007-f6xzb           1/1     Running     0            24s     10.1.196.208   tf-node-0
guide-agent-g1014-qg4cj           1/1     Running     0            9s      10.1.196.195   tf-node-0
scheduler-agent-69cbc8485f-lw6ht  1/1     Running     0            5m36s   10.1.196.232   tf-node-0
...

Job Execution Status:

NAME                  COMPLETIONS   DURATION   AGE
guide-agent-g1001     1/1           34s        38s
guide-agent-g1003     0/1           34s        34s
guide-agent-g1005     0/1           29s        29s
guide-agent-g1007     0/1           25s        25s
guide-agent-g1008     0/1           23s        23s
guide-agent-g1011     0/1           17s        17s
...

Agent Logs (Guide Agent):

The agent automatically initializes, discovers the scheduler, and begins negotiation.

[Guide g1005] Starting with ADK (transport: slim)...
[Guide g1005] Connecting to SLIM at http://slim-node:46357
[Guide g1005] Using SLIM ID: agntcy/tourist_scheduling/guide_g1005
INFO:slimrpc.common:agntcy/tourist_scheduling/guide_g1005/ce1d336764105c0d Connected to http://slim-node:46357
[Guide g1005] SLIM client factory created successfully
INFO:agents.guide_agent:[Guide g1005] Using SLIM transport to scheduler topic: agntcy/tourist_scheduling/scheduler
[Guide g1005] Sending offer...
User > Please register guide offer:
- Guide ID: g1005
- Categories: photography, art
- Available from: 2025-06-01T09:00:00
- Available until: 2025-06-01T14:00:00
- Hourly rate: $42.0
- Max group size: 3

Agent Logs (Scheduler Agent):

The scheduler receives offers, negotiates with tourists, and updates the dashboard in real-time.

INFO:agents.tools:[Scheduler] Created 7 assignments
INFO:slimrpc.server:sending response for session 531412045 with code 0
INFO:core.slim_transport:[SLIM] agntcy/tourist_scheduling/scheduler/8191387809365850102 received session: 1242699209
INFO:slimrpc.server:new session from agntcy/tourist_scheduling/guide_g1170/f9fba0e58e4f85a8 to agntcy/tourist_scheduling/scheduler-a2a.v1.A2AService-SendMessage/71ada7d012b777f6
INFO:agents.tools:[Scheduler] Registered guide offer: g1170
INFO:agents.tools:[ADK Scheduler] Sending update to dashboard: http://ui-dashboard-agent:80/api/update
INFO:agents.tools:[ADK Scheduler] ✅ Sent update to dashboard: guide_offer
INFO:agents.tools:[ADK Scheduler] Sending update to dashboard: http://ui-dashboard-agent:80/api/update
INFO:agents.tools:[ADK Scheduler] ✅ Sent update to dashboard: communication_event
INFO:slimrpc.server:sending response for session 1242699209 with code 0

The Power of Protocols

The Tourist Scheduling System proves that building complex, multi-agent workflows requires more than just smart LLMs—it requires a robust foundation of standard protocols. This demo acts as a blueprint for that future by bringing together four critical pillars:

MCP (Model Context Protocol): Providing a universal way for agents to interface with tools and data sources.
A2A (Agent-to-Agent): Defining a common language for negotiation and task coordination.
Agent Directory: Enabling dynamic service discovery so the mesh can self-organize.
SLIM (Secure Low Latency Interactive Messaging): Ensuring that every interaction is encrypted and authenticated.

By combining these standards, we move from isolated chatbots to a true Internet of Agents—where software services actively cooperate to solve your problems.

Ready to start building? Check out the full source code in the repository and join the revolution!

🌍 The Concept: A Digital Marketplace

⚙️ How It Works: The Internet of Agents

1. The Hub-and-Spoke Architecture

2. Anatomy of an Agent

The Scheduler: The Brains of the Operation

The Dashboard Agent: The Face

The A2A Protocol

3. The Live Performance

🛠️ Under the Hood: The Code

1. Giving Agents Skills (Server-Side)

2. Auto-Discovery with RemoteA2aAgent (Client-Side)

3. The Data Contracts (A2A Agent Card)

4. Joining the Secure Mesh (SLIM)

5. Publishing to the Directory

6. Pulling Cards from the Directory

7. The Conversation: Agents in Action

8. The UI Protocol (A2UI)

🌟 Why This Matters

🚀 Hands-On: Run the System Locally

Prerequisites

Step 1: Set the Stage

Step 2: Configuration

Step 3: Launch

Step 4: Visualization (Optional)

📁 Project Structure

Helper Scripts for Local Use

setup.sh

run.sh

🖥️ Running the Frontend (Optional)

📊 Observability: Logs and Traces

Distributed Tracing

Structured Logging

🖥️ Sample Output

📸 Dashboard Screenshots

☸️ Deploying to Kubernetes

Deployment Helper Scripts

Prerequisites

Deployment Steps

📊 Real-world Deployment

The Power of Protocols

📚 References

`setup.sh`

`run.sh`
